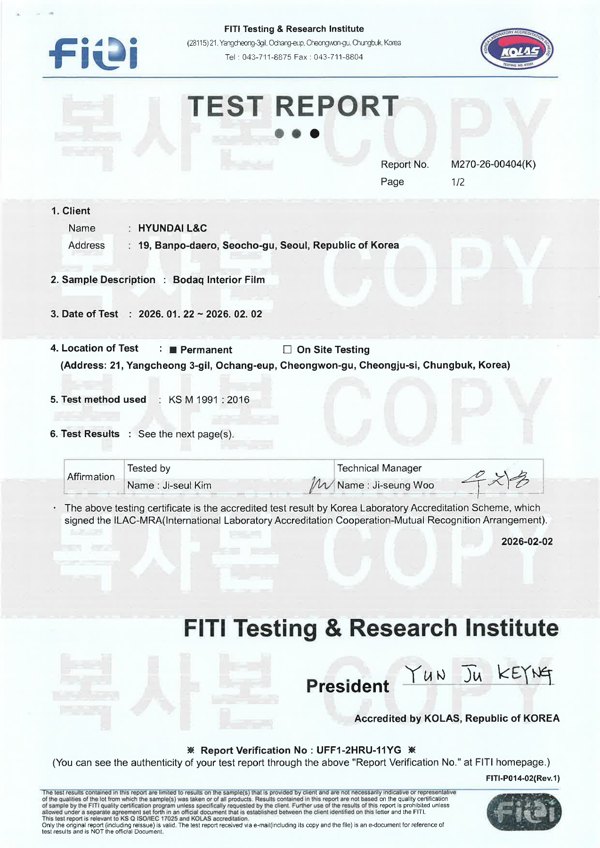

FITI / Test report
Phthalate content
Seven tested phthalates each below 50 mg/kg (the quantification limit).
DEHP, DBP, BBP, DNOP, DINP, DIDP and DIBP. Below the quantification limit does not mean zero content.
Certificates & Test Reports
BODAQ / Document library / 2026
Evidence behind the surface.
Explore the laboratory evidence for BODAQ Interior Film. Preview each document, read the reported results and open the complete PDF.
Download updated PHPL lookbook · 22 pages
What these documents cover
These 7 test reports (6 FITI, 1 KCL) identify the submitted sample as BODAQ Interior Film. Results apply to the tested samples and conditions. They do not certify every pattern, batch, finished PHPL sheet, adhesive or installed assembly. Read the full reports and confirm suitability for your intended use.
These 7 test reports (6 FITI, 1 KCL) identify the submitted sample as BODAQ Interior Film. Results apply to the tested samples and conditions. They do not certify every pattern, batch, finished PHPL sheet, adhesive or installed assembly. Read the full reports and confirm suitability for your intended use.

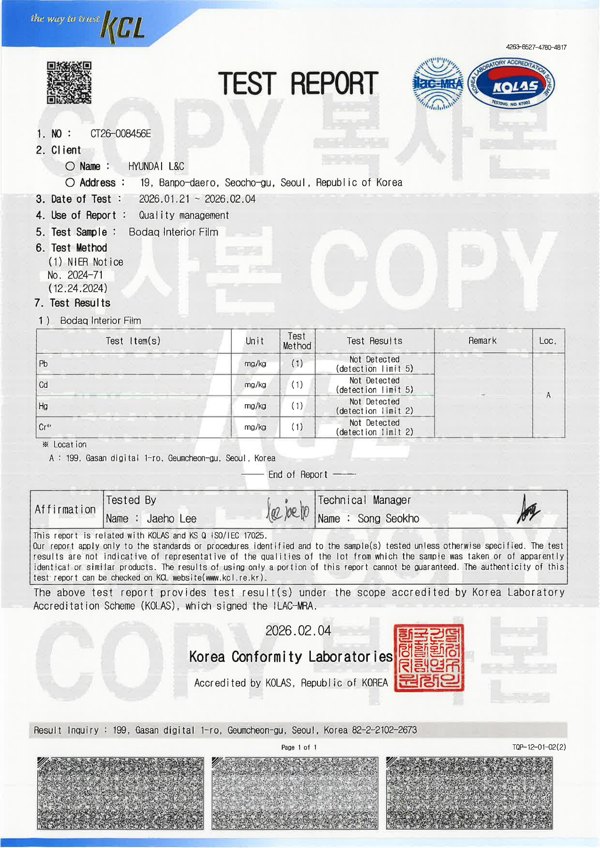

KCL / Test report
Heavy metals
Lead, cadmium, mercury and hexavalent chromium: not detected at the stated detection limits.
Detection limits: Pb and Cd 5 mg/kg; Hg and Cr(VI) 2 mg/kg. Issued by Korea Conformity Laboratories (KCL).
FITI / Test report
Abrasion resistance
Mass loss: 20.0 mg after 1,000 abrasion cycles.
CS-10 abradant; 1,000 g applied weight. Tested after removal of the release liner.

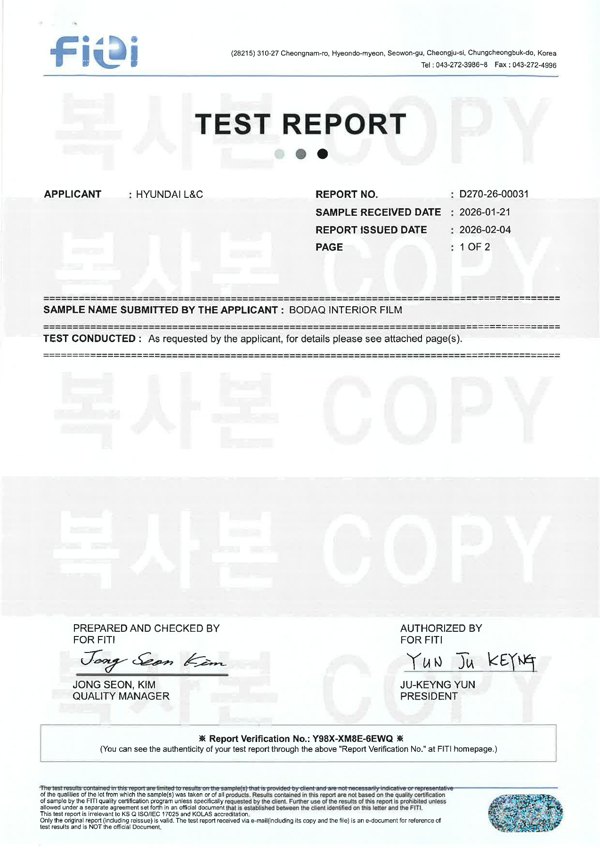

FITI / Test report
Heat resistance
Measured cut gap: length 1.706 mm; width 0.083 mm.
Pre-treatment: 60 +/- 1 degrees C for 48 h, followed by conditioning. These measurements are not a maximum service-temperature rating.

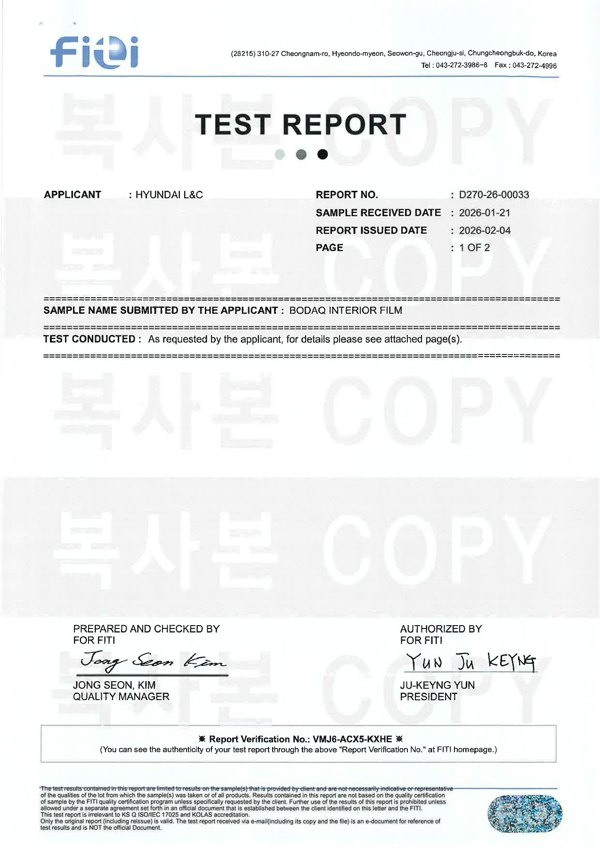

FITI / Test report
Physical properties
Tensile: 48.6 / 45.1 N per 10 mm. Elongation: 212 / 226%.
Length / width results. Tear: 3.92 / 5.34 N. Adhesion: 8.76 N per 10 mm, at 180 degrees, with 5 min dwell.

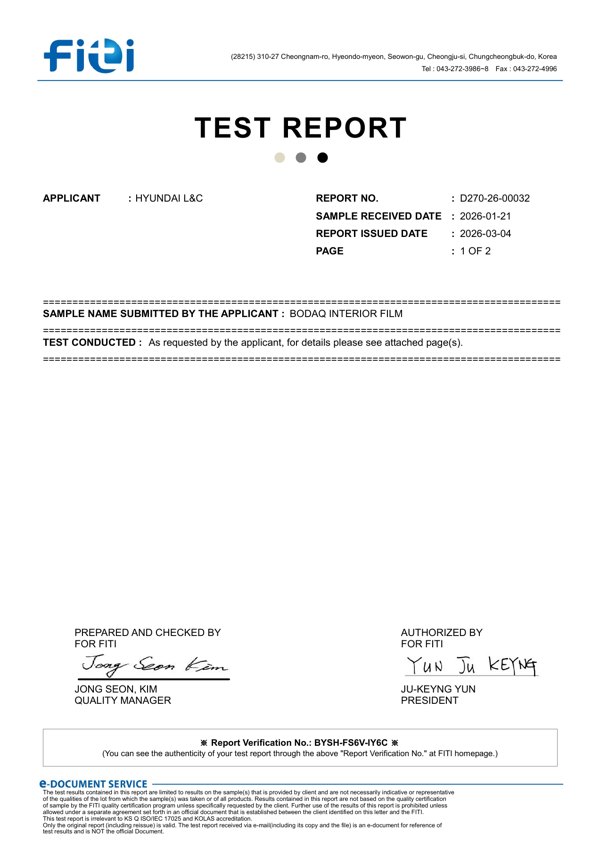

FITI / Test report
Surface & stain resistance
17 of 19 listed agents: rating 5 (no visible changes).
Acetone and ethyl-butyl acetate: rating 1 (drastic changes). Keep these solvents away from the surface. Test subcontracted as noted in the report.

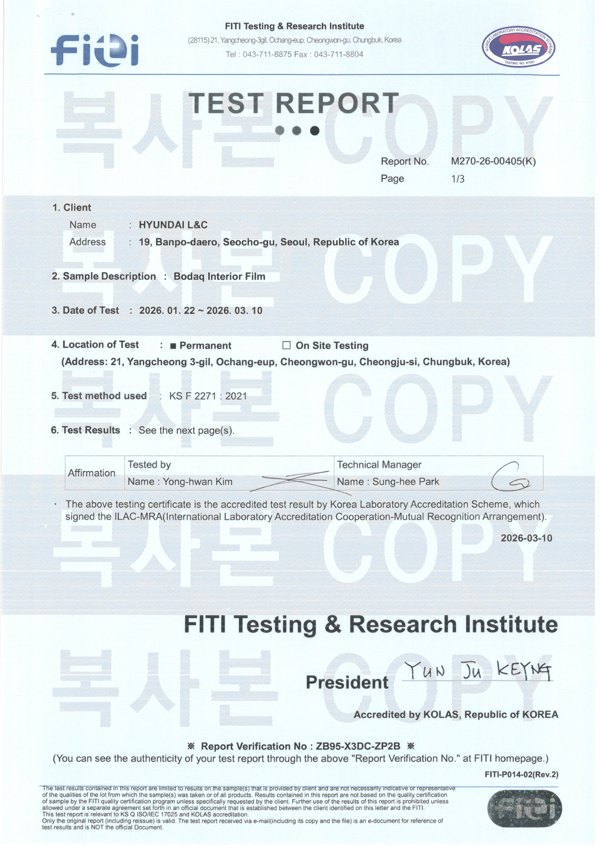

FITI / Test report
Gas toxicity test
Reported mean incapacitation times: 14 min 44 s and 13 min 14 s.
Tested film thickness: 0.4 mm; release liner removed. This report alone does not establish a fire rating for a finished PHPL sheet or wall assembly.
Document copies are provided in full, including the issuing laboratory's notes and limitations. The summaries help you navigate the reports and do not replace their methods, conditions or complete results. Your browser's PDF viewer provides save and print controls.
